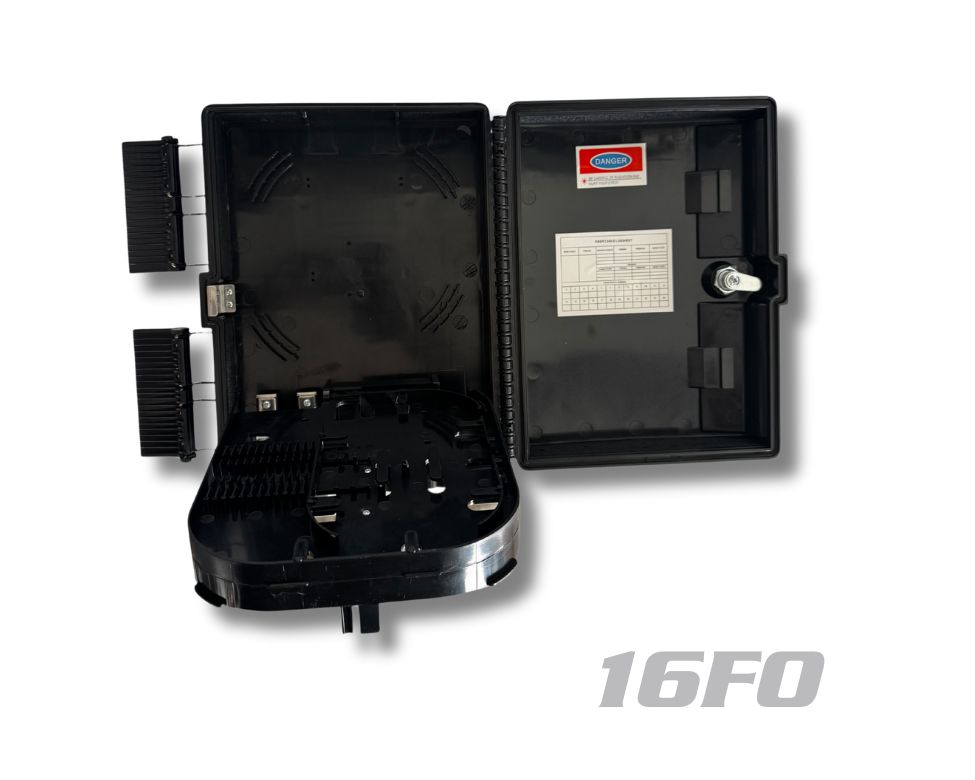

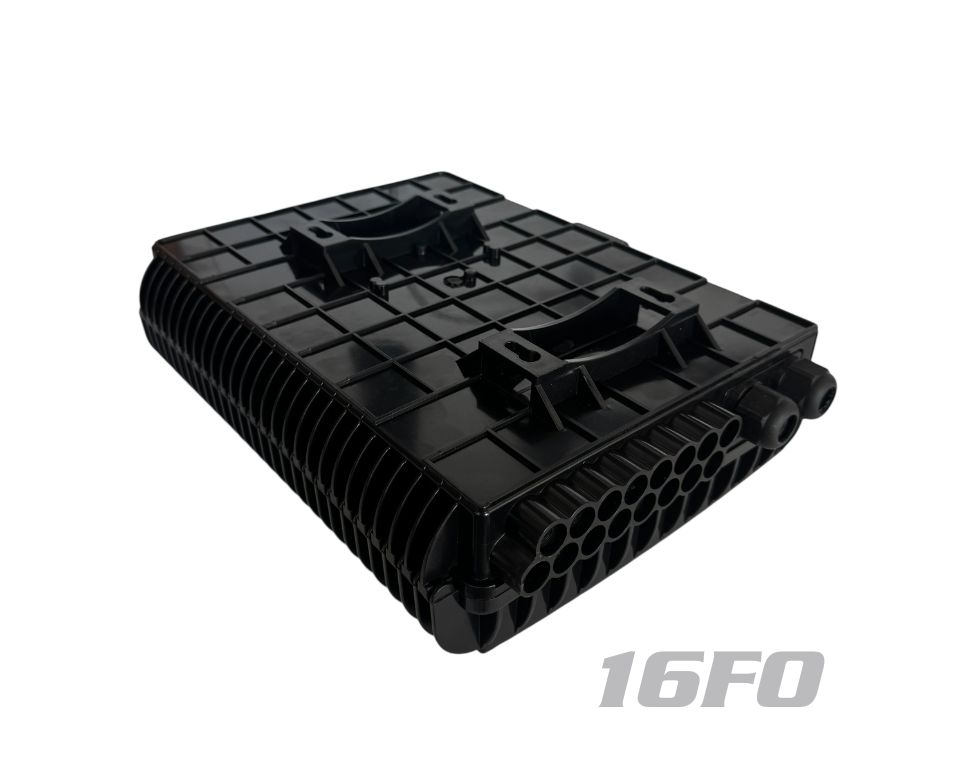

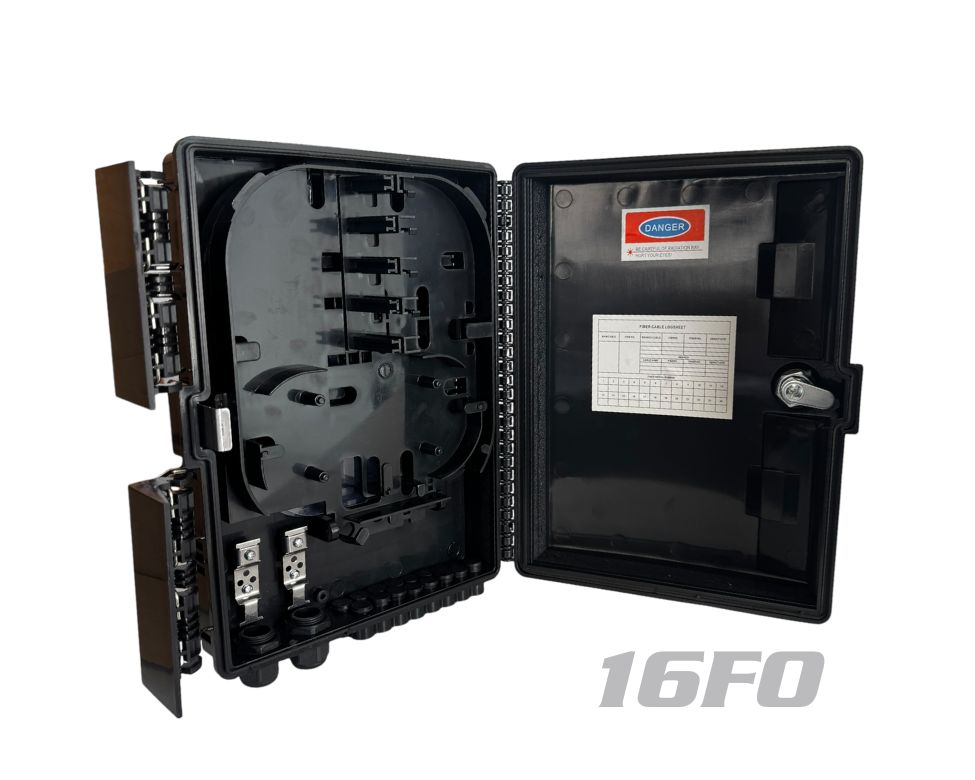

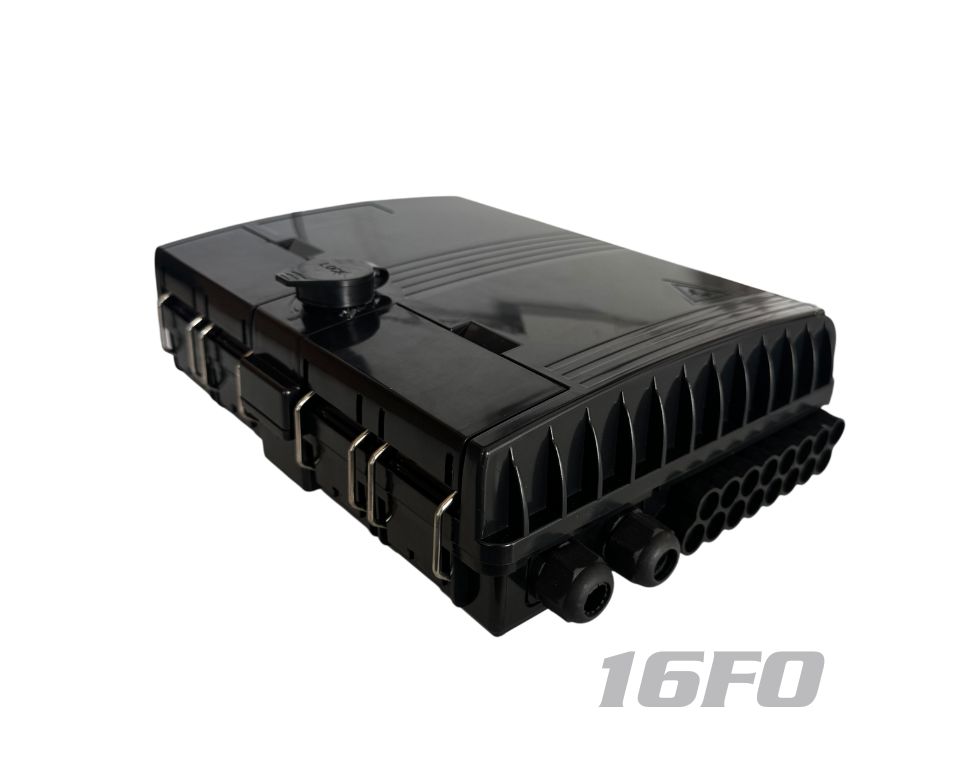

16 FO Fiber Optic Termination Box BLACK RS460811

Description

This distribution box terminates up to 2 fiber optic cables, offers spaces for splitters and up to 16 fusions, allocates 16 SC adapters and working under outdoor environments. It is a perfect cost-effective solution-provider in the FTTx networks.

Features

• Splice and patch cord use Separation structure, easy to Capacity expansion and maintenance；
• High quality plastic,Beautiful appearance；
• Internal turnover structure,easy to maintenance；
• Can install 16 pcs of SC adapters；
• Can install mini type splitter and cassette PLC splitter；
• Could exit 16 pcs of drop cable；
• Protection levels：IP65

Installation preparation

• Checking the product :As per the packing list to check it one by one. Documents Tools

Fiber-optical stripping and fix.

• As per the requirement,open the hole-at the bottom of the box,then install the seal rings As per the cable size to cut seal rings, cable through the it
• Adjust the length of cable, keep extra cable around 0.5m；

• Clean the cable, cut the cable protector around 0.4m,keep armoured part around 30mm,keep the fiber around 60mm；

• When strip the cable ,use insulating tape or heat shrink protector； Put the fiber through the hole,fix it with clamp, then tighten the screws.

Trunk optical cable splice and route with pigtail

• Strip the fiber and pigtail, 1.3m to 1.5m, then put the tube protecto
• Open the tray, splice the fiber；
• Put the finished fiber into the tray
• Fixed the fiber and pigtail
• Remark the fiber and record it

Specifications

Dimensions and Capacity

Technical Specifications

Shipping Information
