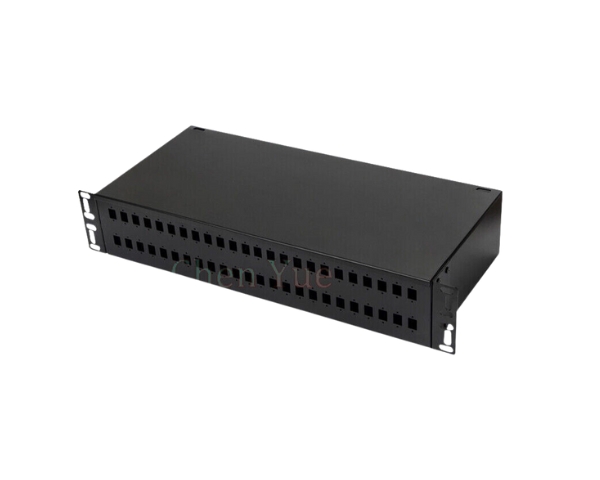

ODF Metal 48 Port Empty Rack Mount 2U RS461309-E

Description

ODF Metal 48 Port Empty Rack Mount 2U RS-SA48B-E

ODF Metal 48 Port Empty Rack Mount 2U Fiber Optics Patch Panel. It is suitable for the use in telecommunication networks, central office optical cable systems, and premise fiber networks. One cabinet design provides OSP cable fibers and pigtail splicing, patch cords termination, and storage.

Features

•  Applicable in the termination and 19” standard structure,
•  Rack mount in optical distribution frame ODF
•  Suitable for FC ,SC, ST, LC, E2000 adapter
•  1.0 mm Cold rolled steel sheet, with electrostatic spraying
•  Metal sliding tray of the splice tray and bottom, easy and fast to operate without open the cove
•  Clip cover design, dust proof and whole box closed not in operation
•  Total front operation with cable clamps and routing area, large fiber storage
• 4 Cable entry ports at back, diameter can be customized, normally 20mm
• Box color can be customized, white, black,etc.
•  Silk print or laser mark both available.
•  All the metal parts are stainless steel for long life span guarantee.

430*250*2U

Technical Specification

Width : 430 mm

Deepth : 250mm

Height : 2U

Max capacity : 48 cores

Material :  1.0 mm cold rolled steel SPCC

Cable exit port SC FC LC ST , etc adapter port

Material coating Powder

Operating temperature -10~+85°C

Standards TIA/EIA 568.C, ISO/IEC 11801, ENS50173, IEC60304, IEC61754, EN297-C,

CEA/EIA-310-E, ANSI/TIA/EIA-606-A, GR-449-CORE, RoHS

IP Rating : IP20

Standards :  IEC61300, IEC61754, ROHS, etc
