Model: RS460803
Factory Name: FTTH -106C

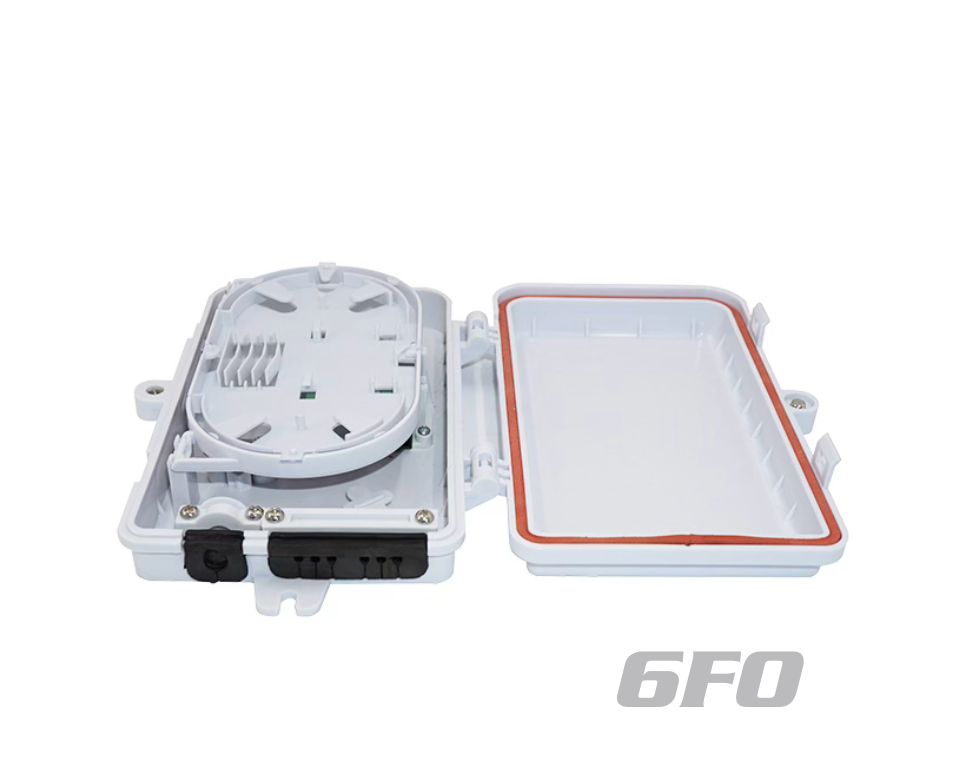

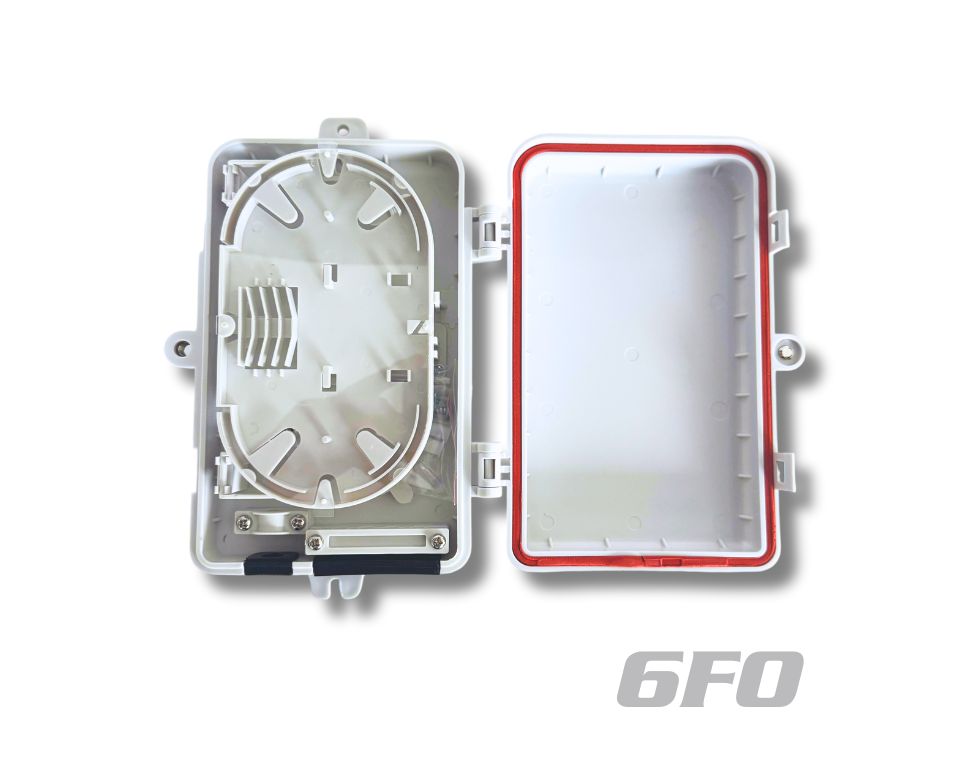

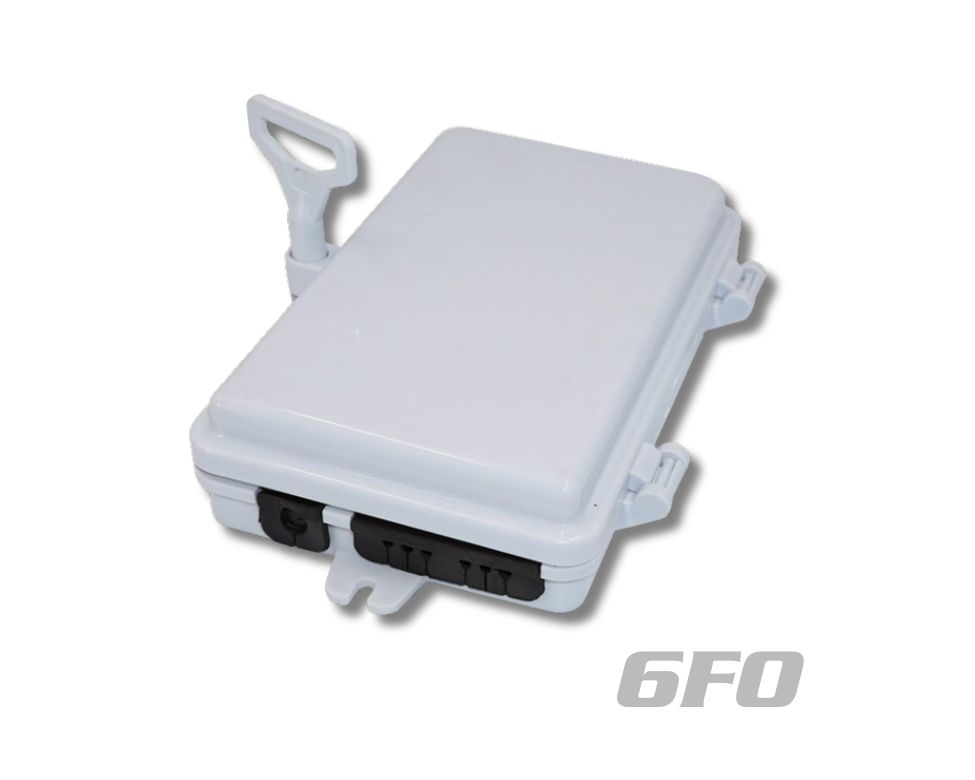

This series are used in the end termination of residential buildings and villas, to fix and splice with pigtails; can be installed on the wall; may adapt variety of optical connection styles; optical fiber can be managed effectively.
Specifications
| Type | FTTH –106C |
|---|---|
| Size (mm) W×D×H | 210×140×40 |
| Cable diameter (mm) | Φ7～Φ10 |
| Cable ports | 1+6 |
| Max capacity of splice | 4 (single fiber) |
| IP | 54 |
Packing
| Packing | |
|---|---|
| Quantity per carton (piece) | 30 |
| Outer carton dimension (mm) | 470×235×570 |
| Outer carton volume (M³) | 0.063 |
| Outer carton weight (kg) | 10.5 |
