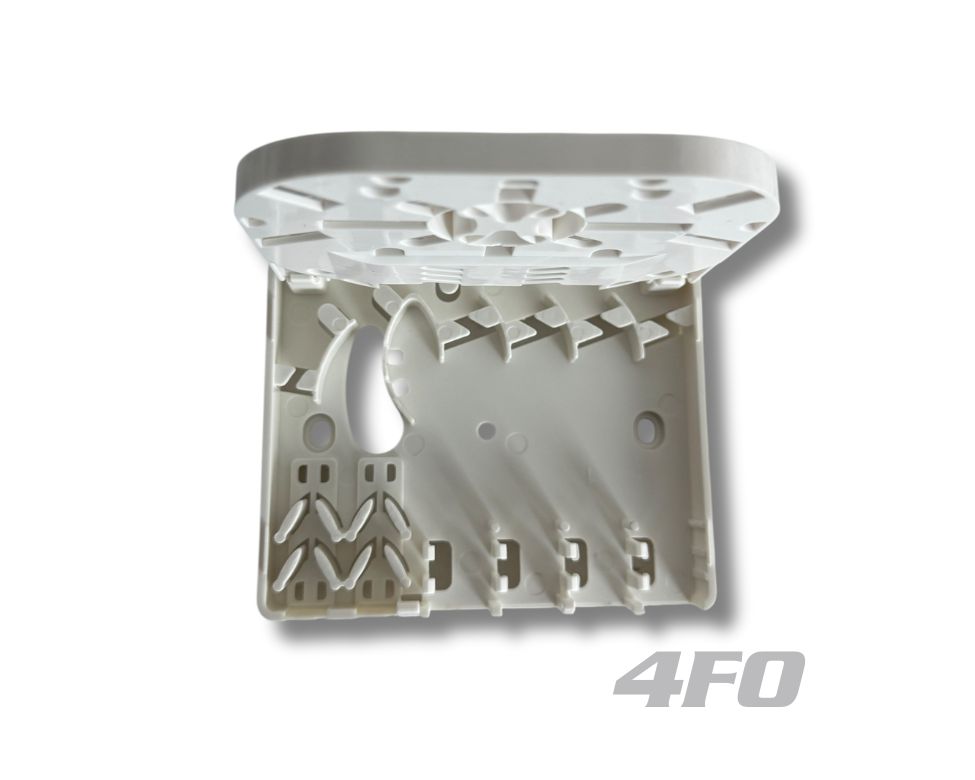

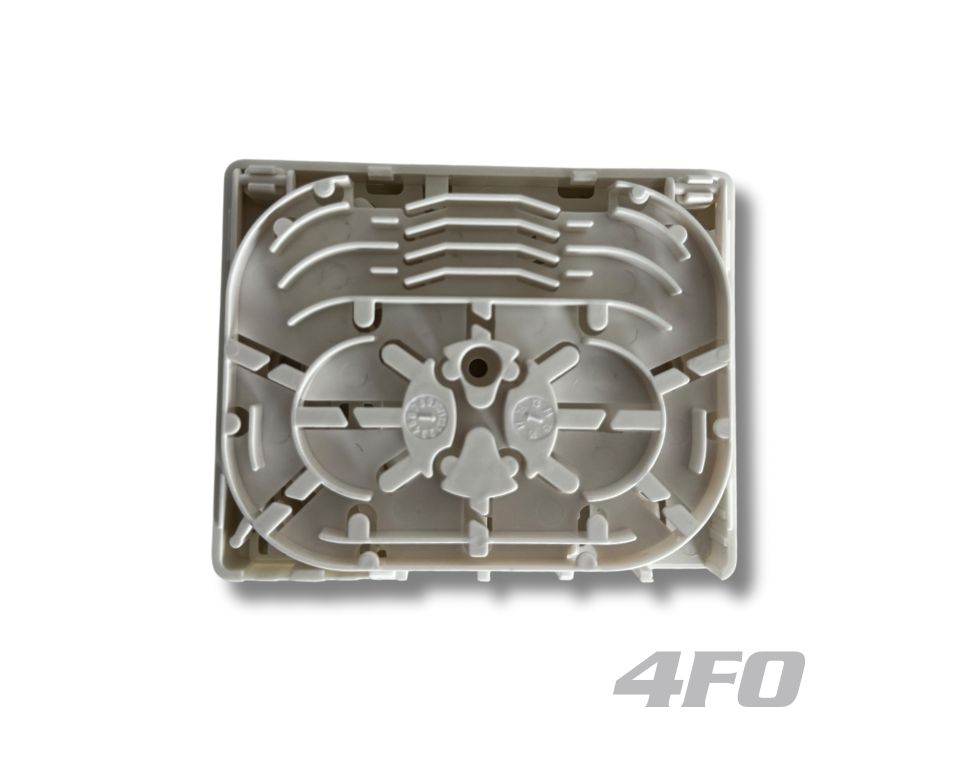

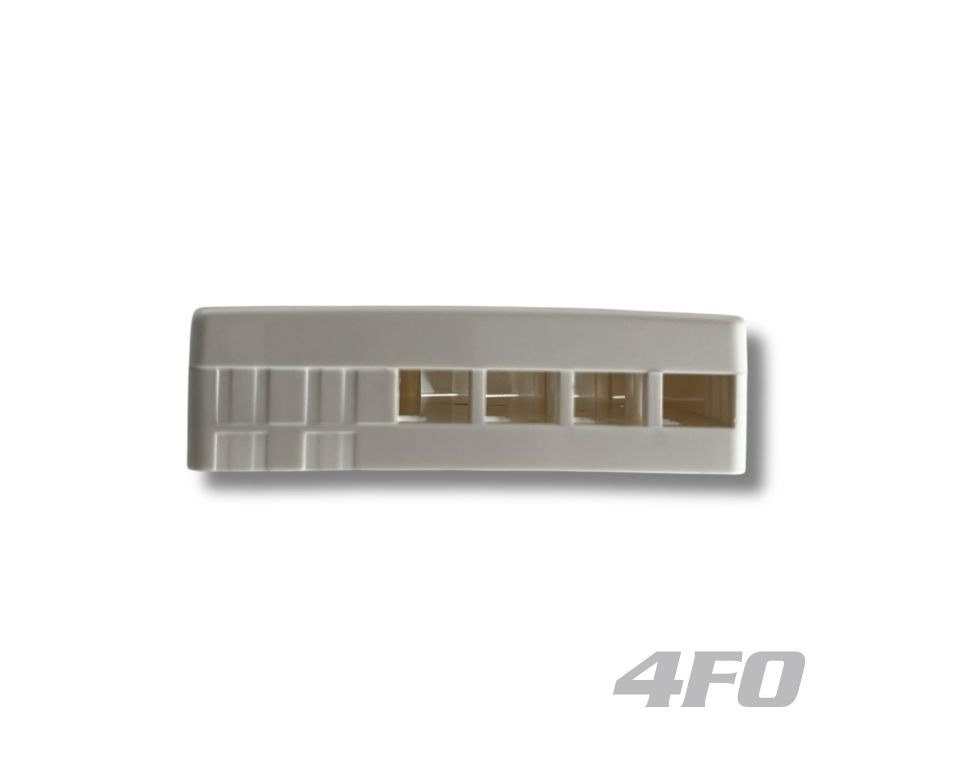

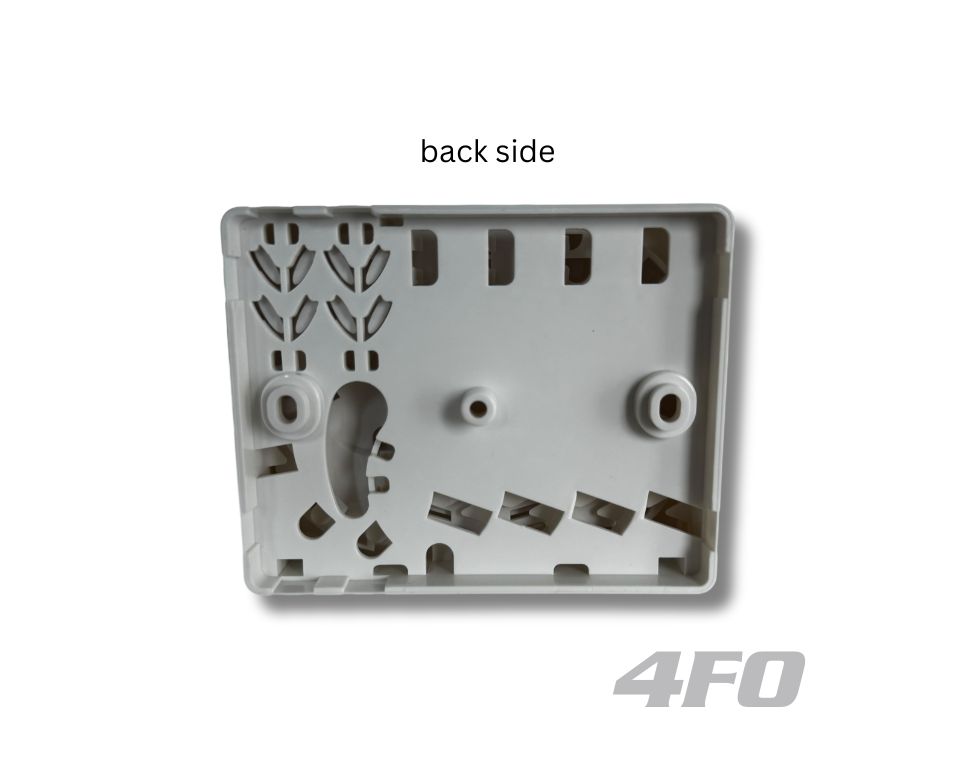

4 FO Fiber Optic Termination Box Small RS460808

SKU: RS460808
5.83
In Stock
SKU: RS460808 Category:

Model: RS460808

Factory Name: FTTH-104D

Description

Application

  • FTB-104D is a desk mounted or wall mounted termination box for end user, indoor use, capable to handle fiber fusion, fiber cables and pigtails.

Features & Benefits

  • Support termination, splicing and storage for fiber optic cable systems
  • Compatible with G.657.
  • Compact structure and perfect fiber management
  • Engineered fiber routing protect bend radius through the unit to ensure signal integrity
  • Applicable for wall-mounted and compatible with flush mounted outlet.

Specifications

Parameter Value Remark
Model FTB-104D
Outside Dimension (mm) 100*80*29
Material Plastic
Color White
Storage of fibers G.657
Splice capacity 4 single fiber
Splice Method Fusion Splice 45mm sleeve
Adapter type and count 4SC or 4 LC Duplex
Input cable 3mm or figure 8 (2*3mm) From side or bottom



Accessories

No. Name Qty.
1 Fiber splice protection sleeve 4pcs
2 Expansion bolts for the outlet all-mounted 2 set
