Name: 24 FO Fiber Optic Termination Box (S) RS460812
SKU: RS460812
Availability: InStock

24 FO Fiber Optic Termination Box (S) RS460812

SKU: RS460812

€35.58

In Stock

Add to wishlist Compare

Other people want this. 1 people have this in their carts right now.

SKU: RS460812 Category: Distribution

Model: WB-H021

Factory Name: H0216G

Description

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Features:

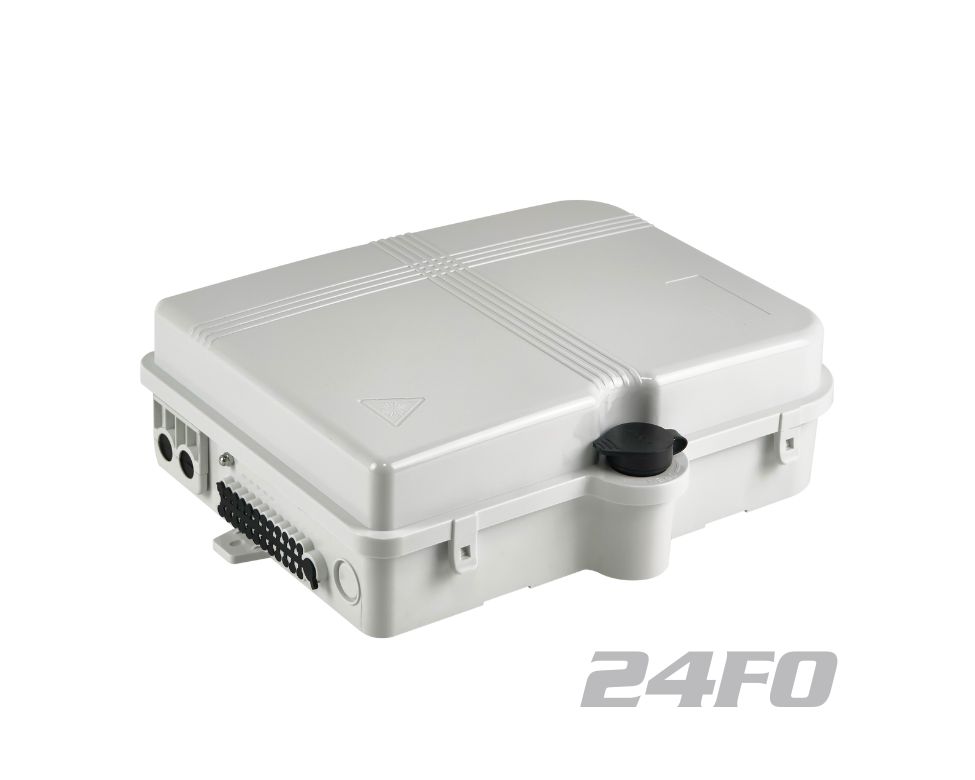

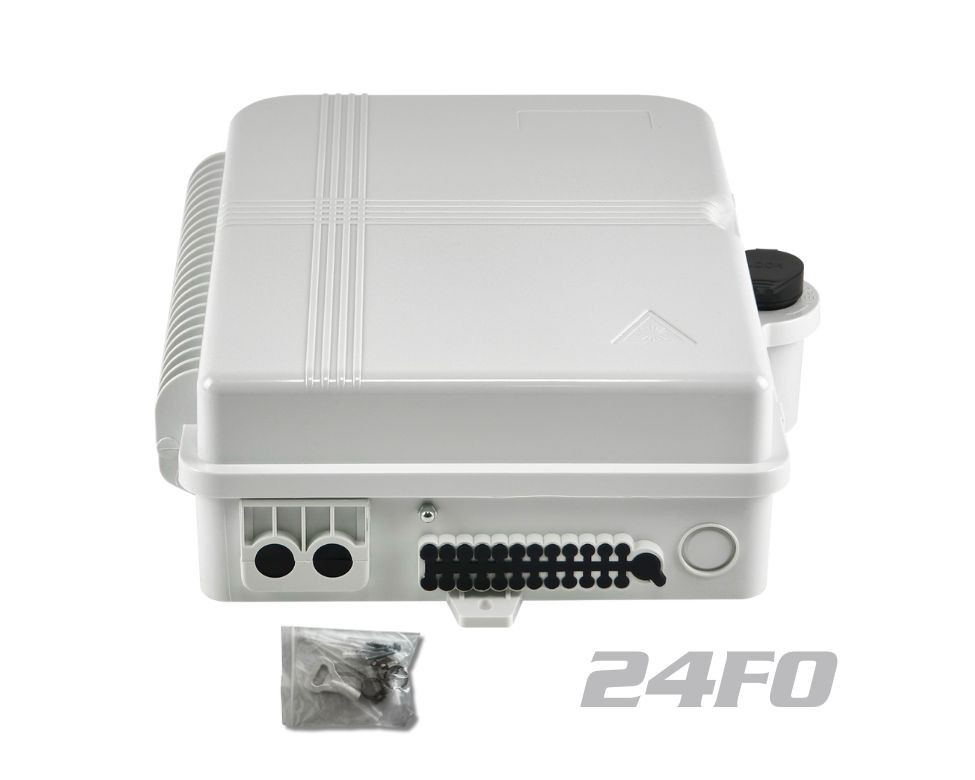

Total enclosed structure.
Material: ABS, wet-proof、water-proof、dust-proof、anti-aging, protection level up to IP55.

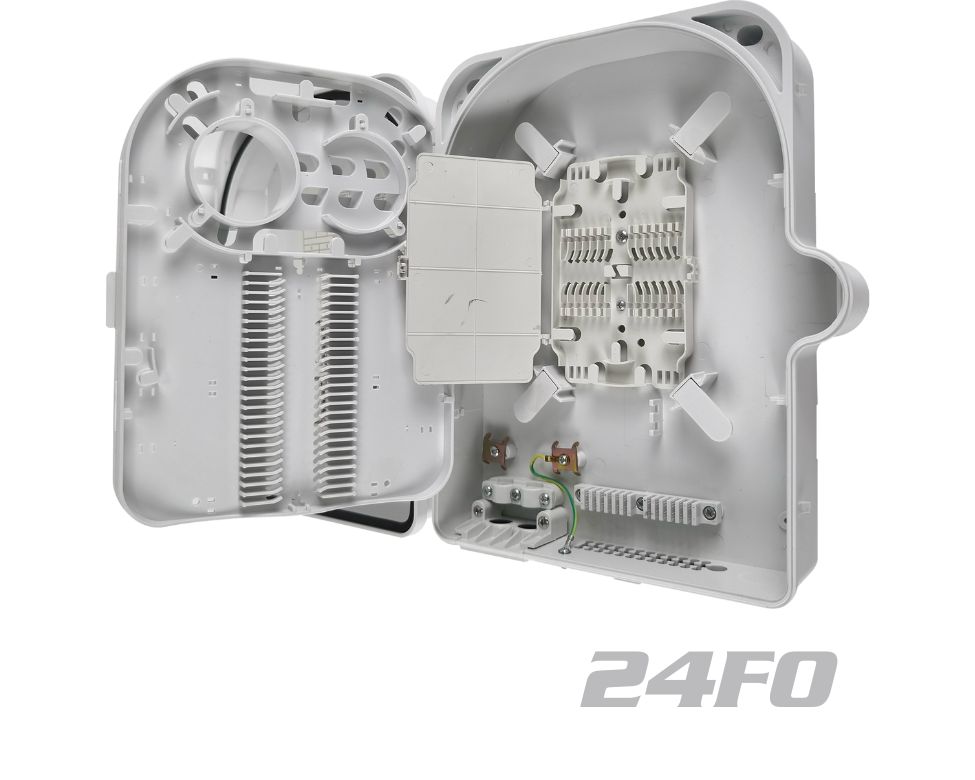

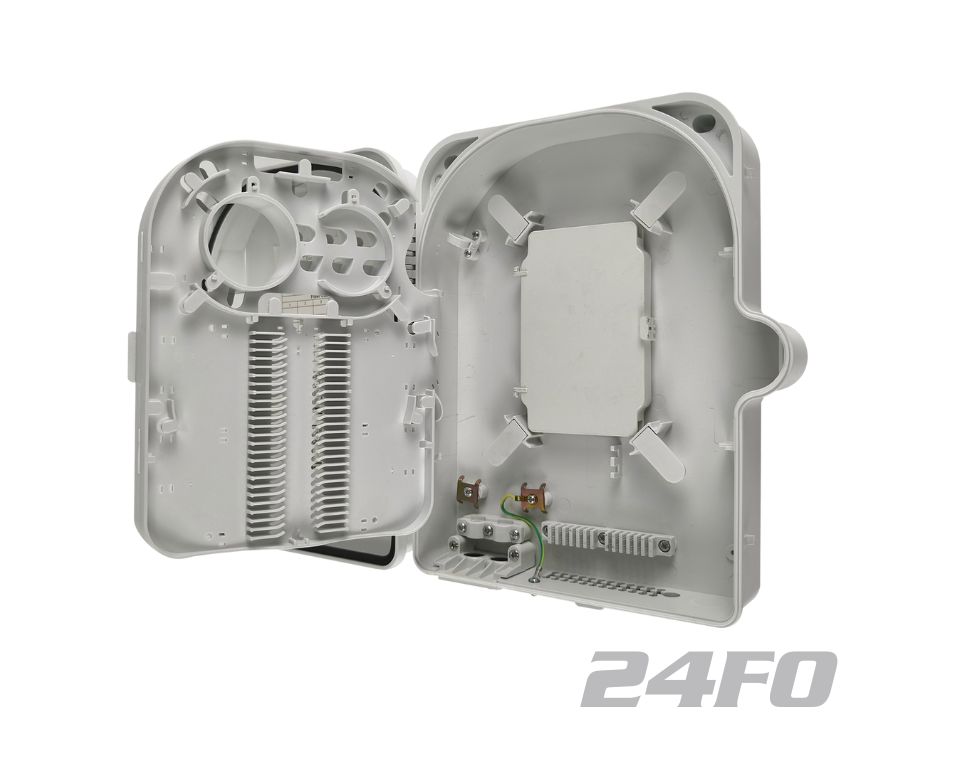

Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc all in one.

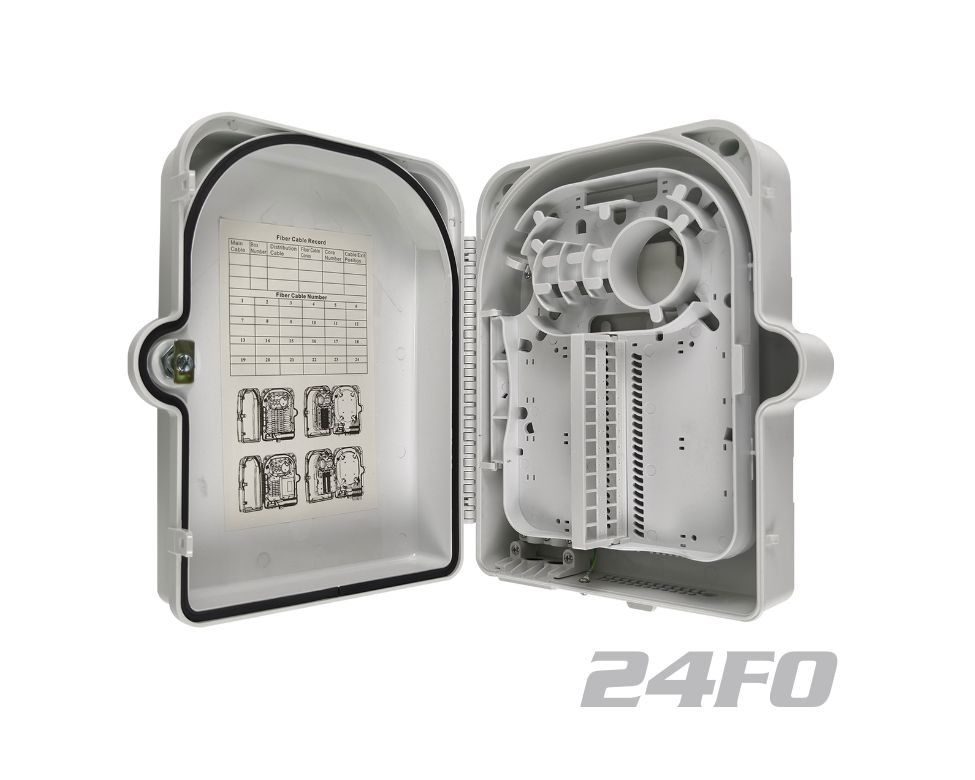

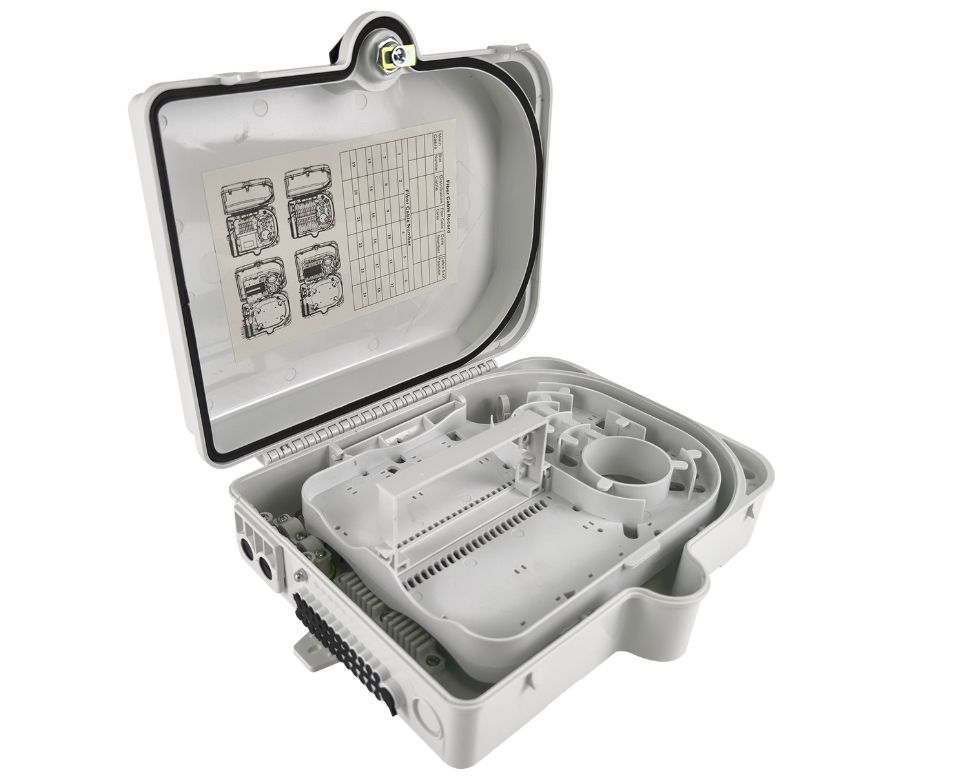

Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
The box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

3. Specification:

Items	Specification
Item No	WB-H021
Splitter Capacity	2 PCS 18 PLC or 1 PCS 116 PLC
Adaptor Capacity	24 PCS SC Simplex Adaptors
Size	330275110mm
Material	ABS
Waterproof	IP55

4. Argument:

Environmental Requirement

Working Temperature	-40°C ~ +85°C
Relative Humidity	≤85% (+30°C)
Atmospheric Pressure	70KPa ~ 106KPa

Main Technical Data Sheet

Insertion Loss	≤0.3dB
UPC Return Loss	≥50dB
APC Return Loss	≥55dB
Life of Insertion and Extraction	>500 times

Thunder-proof technical data sheet

The grounding device is isolated with the cabinet, isolation resistance is less than 2MΩ/500V（DC）；IR≥2MΩ/500V

The withstand voltage between grounding device and cabinet is no less than 3000V（DC）/min, no puncture，no flashover；U≥3000VThe withstand voltage between grounding device and cabinet is no less than 3000V（DC）/min, no puncture，no flashover；U≥3000V

Installation:

Wall-mounted installation:
Drill 4 holes over the wall based on the size in Fig.2，place the expansion bolt , place the box to match up the holes and use bolt to fasten.
Pole-mounted installatio:
Fix 1 set of the easy pole ring to the telecom pole.
