24 FO Fiber Distribution Box Large RS460805

SKU: RS460805
41.53
In Stock
Other people want this. 3 people have this in their carts right now.
SKU: RS460805 Category:

Item code: RS460805

Brand Model: FDB-19024E

Description

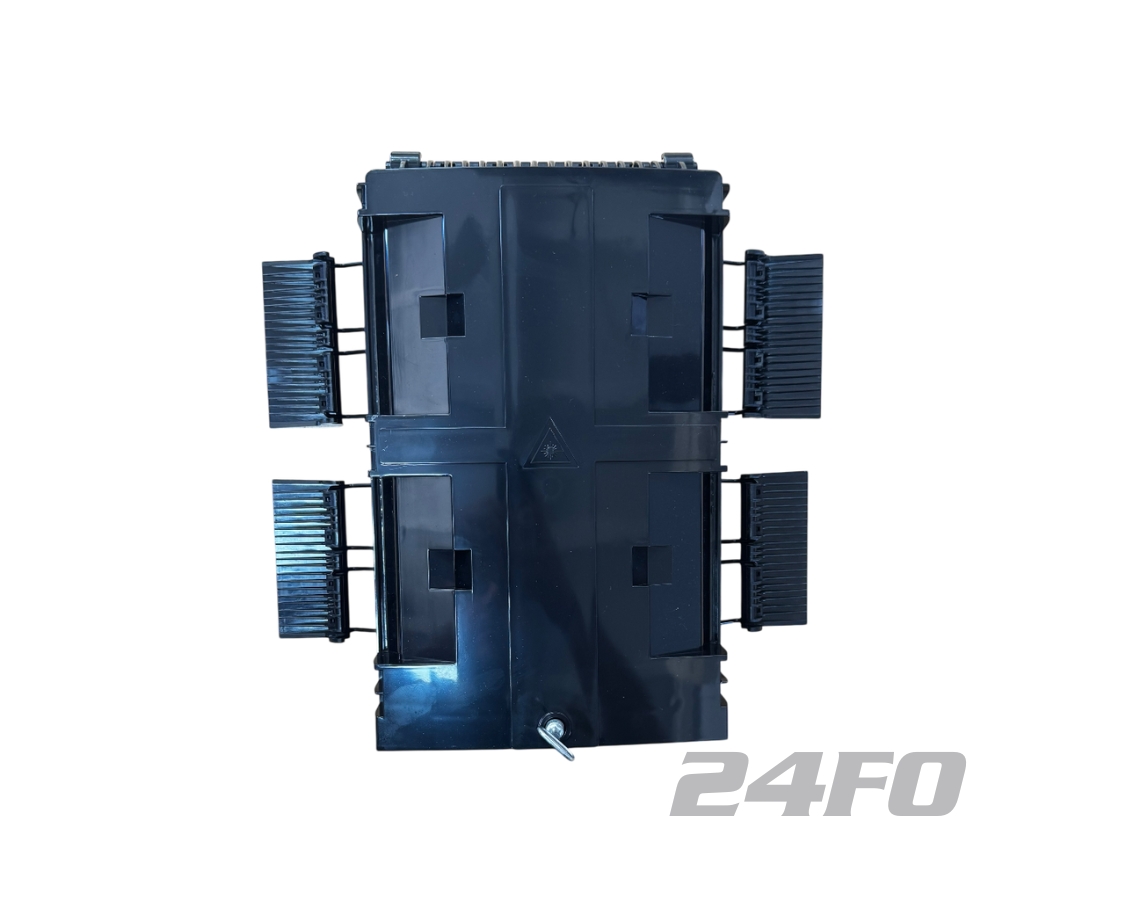

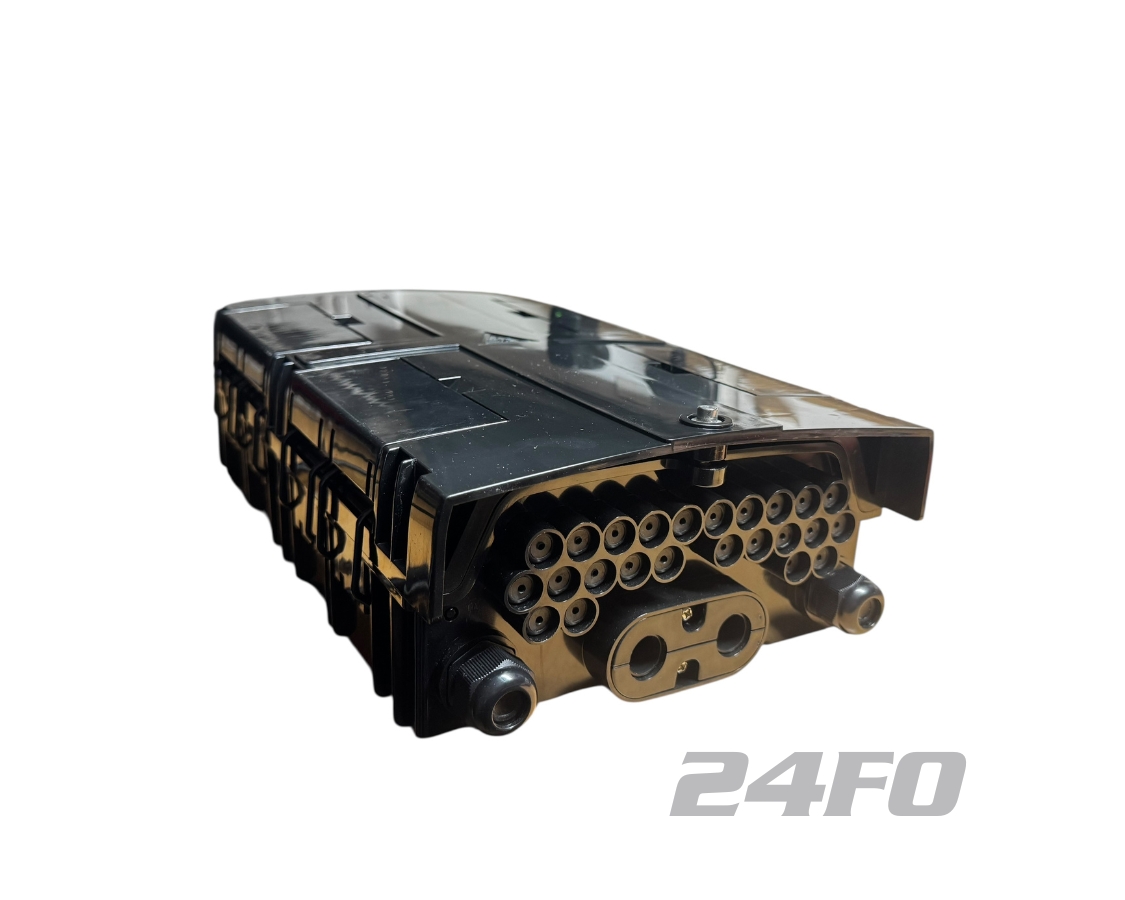

FDB-19024E Fiber Termination Box RS460805 24 Fibers

Designed for FTTx networks, the 24-core fiber box supports splicing, distribution & protection in compact IP65-rated housing.

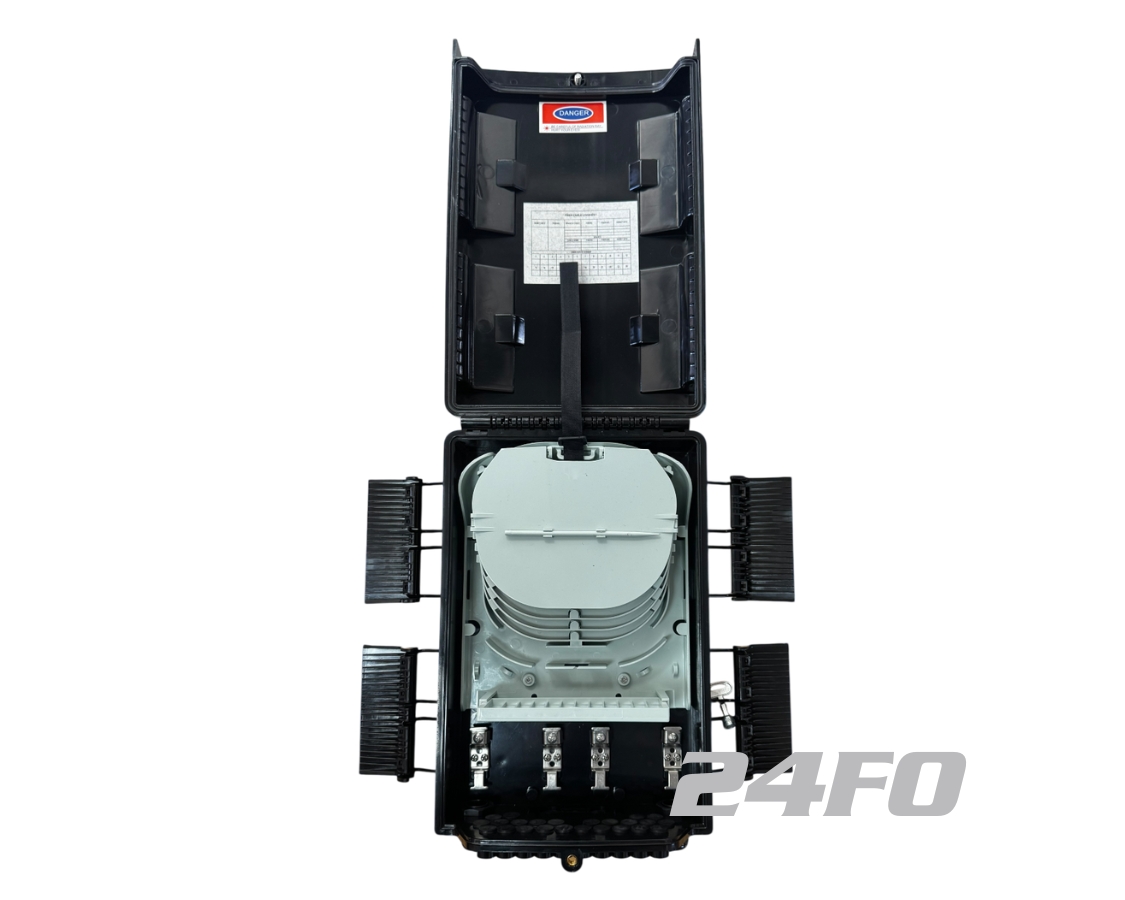

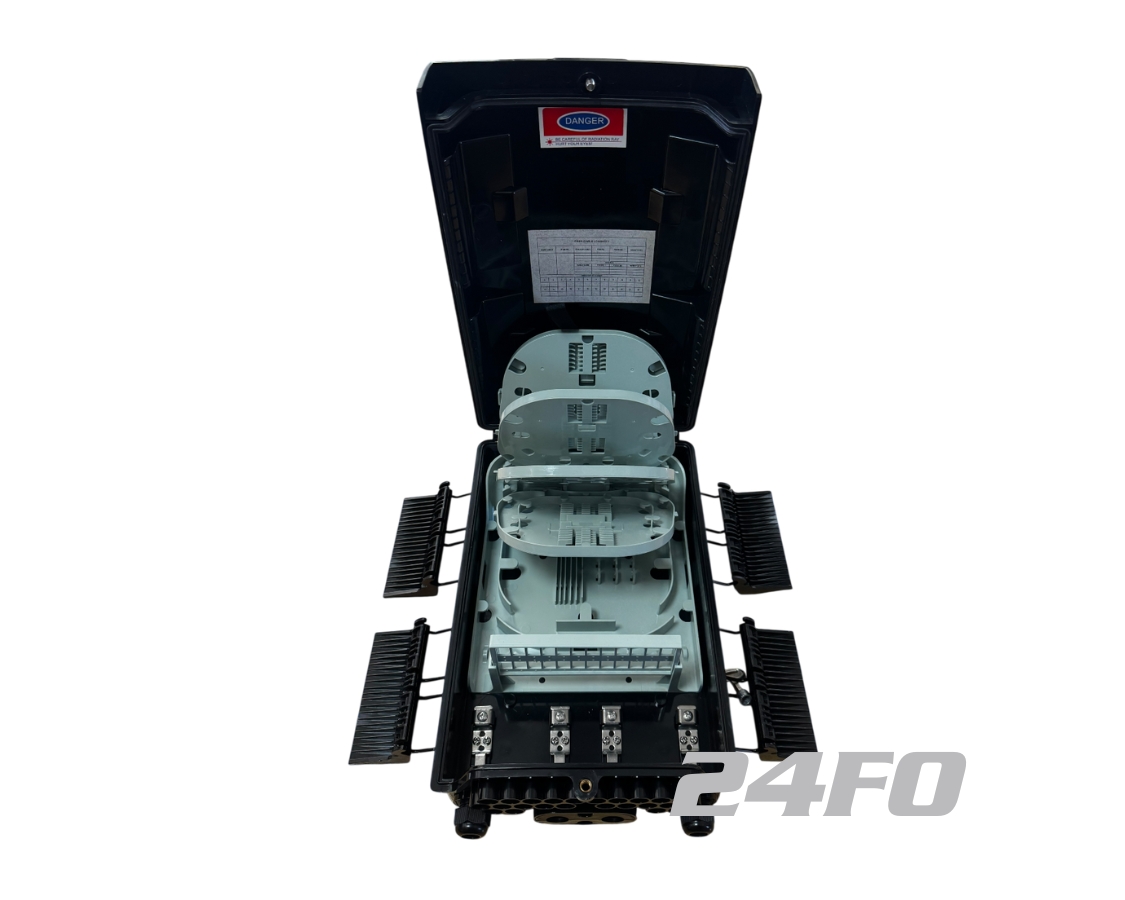

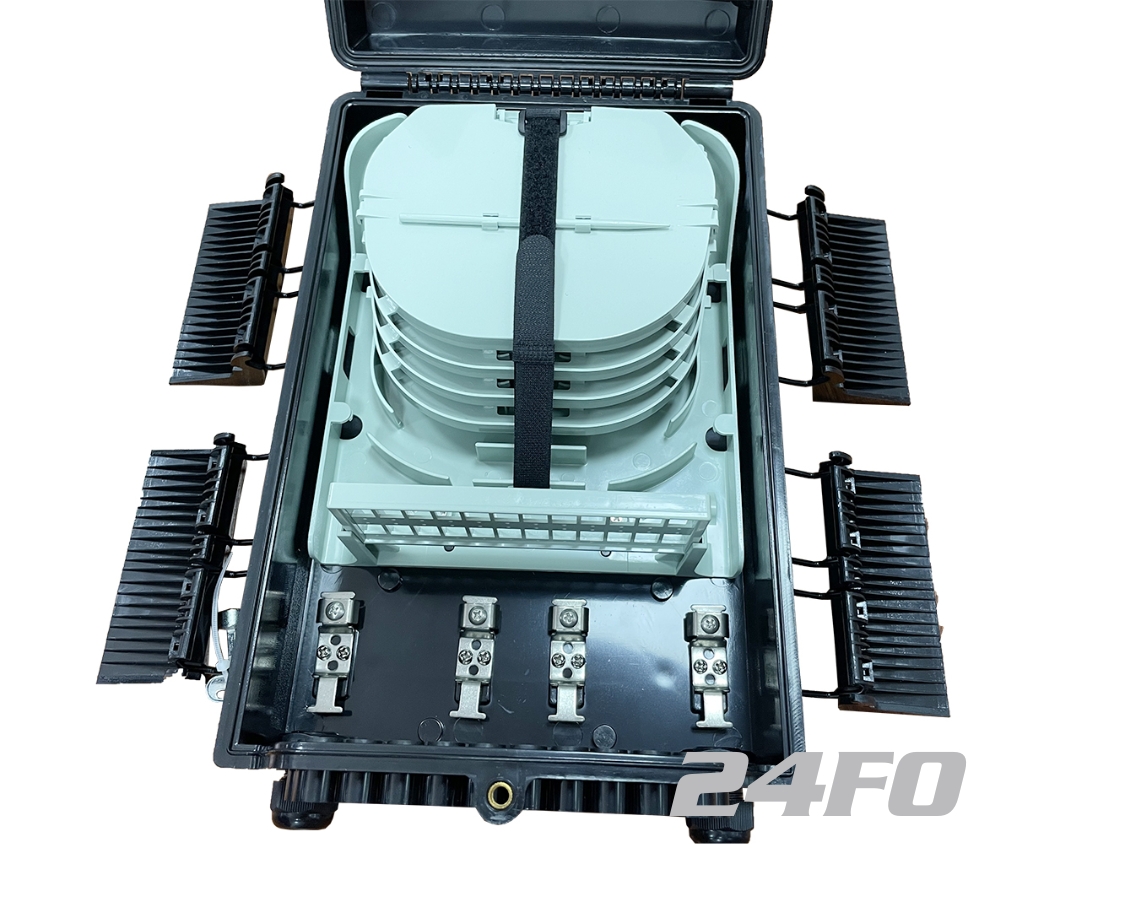

Wall or pole mounted, supports 24 SC adapters & 4 splice trays. Perfect for reliable indoor/outdoor fiber terminations.



Specification Details
Model FDB-19024E
Material PC+ABS
Protection Level IP65
Max Capacity 24 SC Adapters, 4 Trays x 24F, 1:8 x 4 PLC Splitters,24 LC DX
Size (AxBxC) 340 x 220 x 95 mm
Installation Size (DxE) 50 x 335 mm
Working Temp -40℃ to +60℃
Relative Humidity ≤85% (+30℃)
Atmospheric Pressure 70KPa ~ 106KPa
Insertion Loss ≤0.3dB
UPC Return Loss ≥50dB
APC Return Loss ≥55dB
Durability ≥1000 insertions
Ground Isolation ≥2×10⁴ MΩ/500V (DC)
Withstand Voltage ≥3000V (DC)/min, no puncture
