Description
16 core Fiber Optics Termination Box FDB0216A is access terminal box for FTTH network. It connect feeder cable or distribution cable to subscriber’s drop cable with PLC splitter.
It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Features

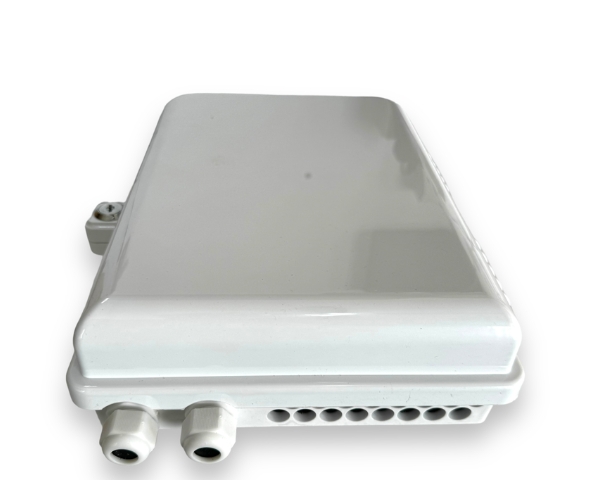

- Box is with key + 2clips, cable entry can be glands or uncut port
- It is applicable for outdoor cables or indoor soft cable
- The box can use for a minimum period of 20 years

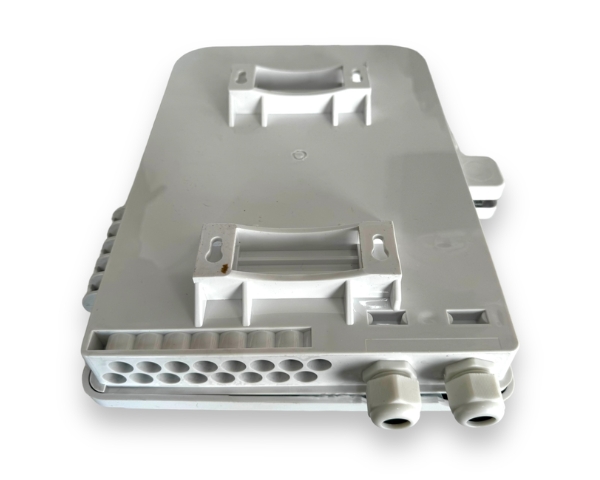

- FTTH outdoor wall mount or pole mount
- Box with waterproof circle, protection class IP65
- High quality ABS+PC plastic, all metal parts stainless steel
- Anti-UV, Ultra violet and rainfall resistant, excellent sealing performance

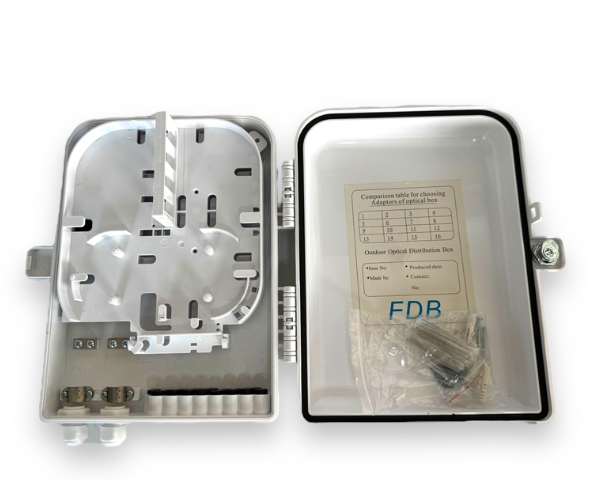

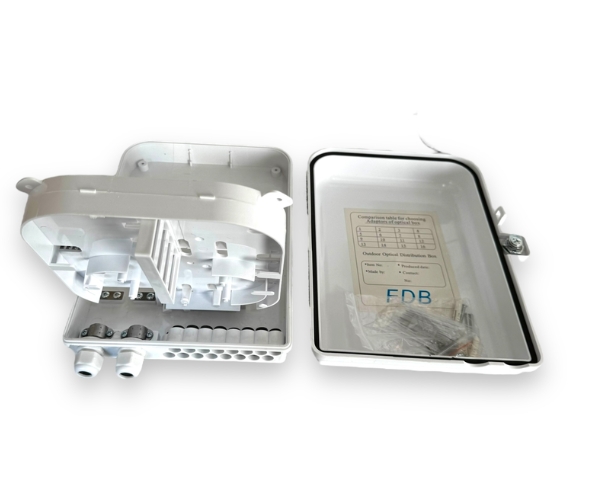

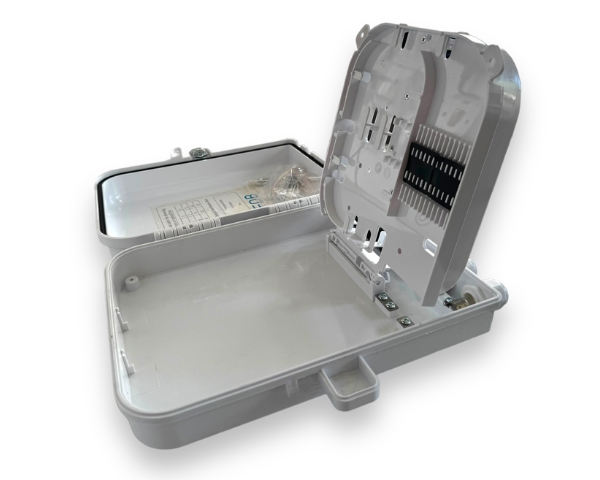

- Rotating splice plate front with 16SC adapter or LGX module, back for
- 16cores fusion splice and routing area
- Cable clamp and fixture for entry and exit, and large redundant fiber storage space, reasonable bend radius
Specification
- Dimension : (A*B*C) 320*260*95mm
- Max.Capacity : 16 cores (single fiber)

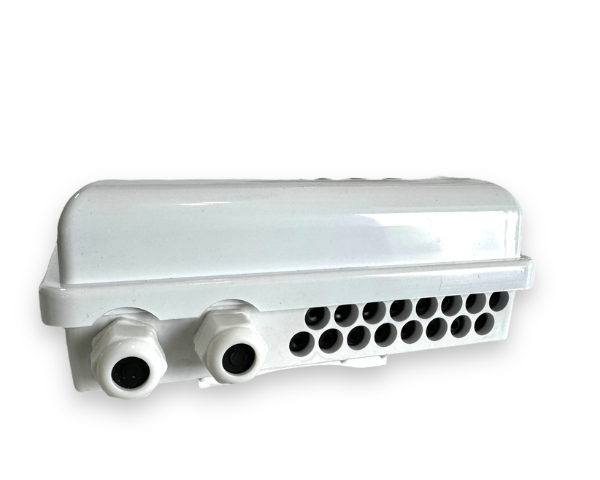

- Cable ports : 2cable gland, 16out 1mid span, 16out
- Cable diameter : In:Φ7-14mm, out:2*φ3mm In:φ17.9mm; out:2*φ3mm
- Splitter quantity : 1×16 or 2pc 1×8 steel tube 1×16 or 2pc 1×8 LGX module
- Color :Grey / black /white
