Description

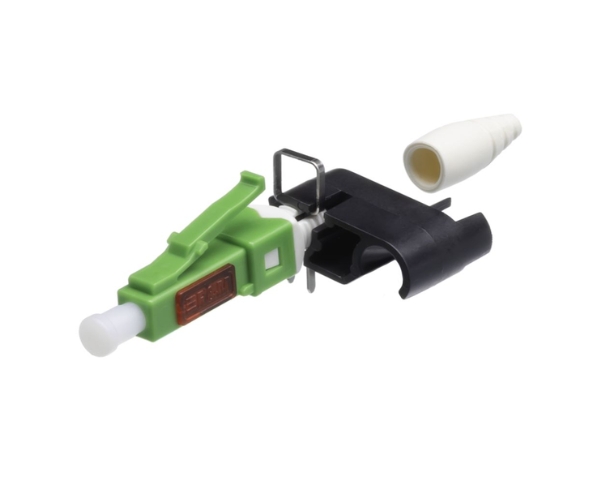

Field-terminable connector, LC APC, Grade Cf/1, in compliance with IEC 61754-20 (LC) and EN 50377-17-1. by R&M
- Connector housing made of PBT/UL-94 V-0, green, (singlemode APC), extended unlocking lever for optimum unlocking, fiber stub with 8° cleaved fiber, red semi-transparent push button for fiber fixation and function testing.
Connector housing made of PBT/UL-94 V-0, green, (singlemode APC), extended unlocking lever for optimum unlocking, fiber stub with 8° cleaved fiber, red semi-transparent push button for fiber fixation and function testing
Color green, pigtail boot white.
Technical Data
| Connector type (A) |
LC |
| Connector color (A) |
green |
| Polishing plug (A) |
APC 8° |
| Protection class IP |
IP 20 |
| Attenuation grade IL (A) |
C |
| Connector class |
connector |
| Operation temperature |
10 °C to 60 °C / +50 °F to +140 °F |
