Description

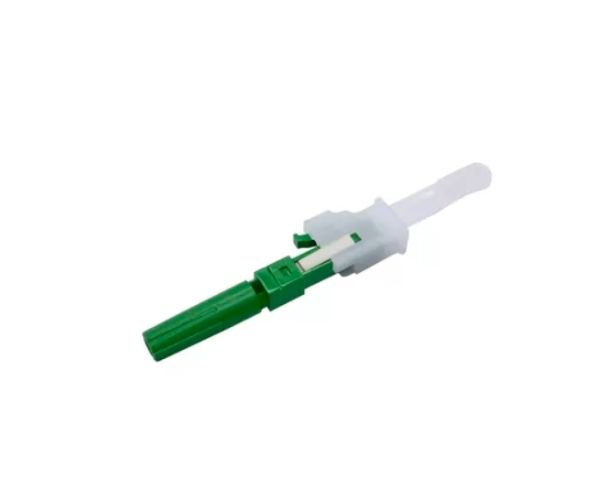

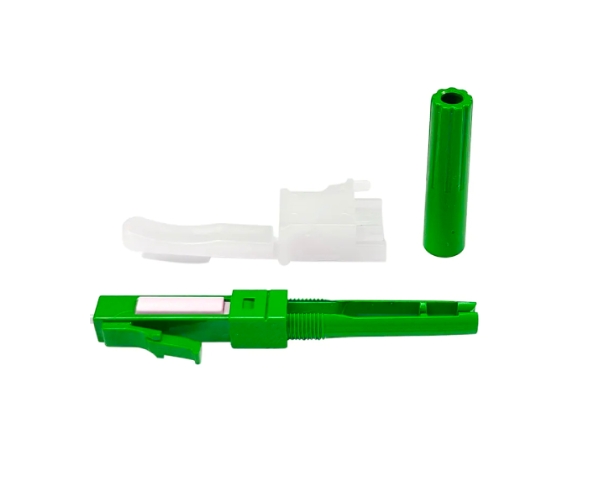

Fast Connector LC/APC, FTTX Fiber Quick Connector FKLU-003
LC/APC Fast Field Installation Connector also called Mechanical connector is a kind of optical on-site connector, used in field wiring operation and FTTH project where need fast and stable connection.
Features
- Do not need hot melt, pre-polished and curing ceramic ferrule, high quality, ensure <0.5dB loss and low return loss.
- Metal V groove, unique design, it can effectively prevent the volatilization of matching gel and prolong the service life
- Good resistance to high and low temperature changes, stable and reliable performance
- Cable stripper length: 15mm coating / 10mm bare fiber
- NOT ONLY USE FOR 2.0*1.6MM, but also for bare fiber 250um. 0.9mm, 3mm round cable.
- Can made any length of fiber optic patch cord on-site
- On-site installation, simple and quick operation, only 2 minutes
Application
- All fiber interconnection;
- Telecom Distribution and Local Area Networks;
- FTTH and FTTX;
- Passive optical networks [ATM, WDM, Ethernet];
- Broadband, Cable TV(CATV)
