4 FO Fiber Optic Termination Box RS460806

SKU: RS460806
6.19
In Stock
SKU: RS460806 Category:

It can be installed on the wall, and adapt variety of optical connection styles.

Features

Description

Fiber Optic Termination Box 4 Cores FTB104B-KR is used in the end termination of residential building and villas to fix and splice with pigtails.

Features

  • FTTH indoor wall mount, home or work area
  • Embedded surface frame, easy to install and disassemble

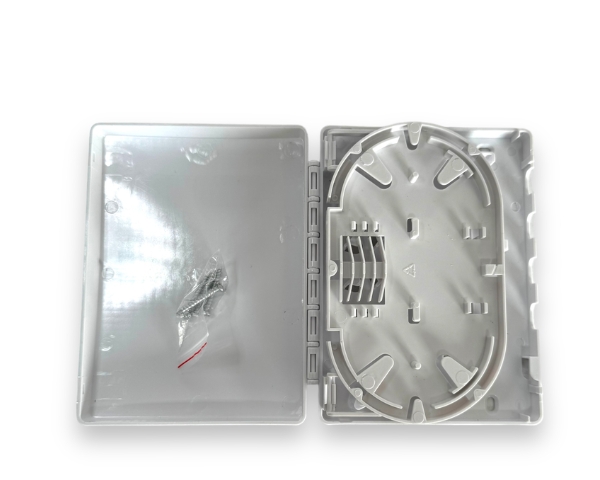

  • Integrated with fiber cassette and cable management rods
  • Max. 4 SC/LC duplex adapterHigh ABS+PC/ABS engineering plastic, white color.
  • Laser mark on the lid, 2clips on the back,no need key
  • Dust-proof, and ROHS proof with IP45 protection level

Fiber Optic Termination Box 4 Cores Specification

  • Model : FTB104B
  • Dimension : (A*B*C) 150*110*30 mm
  • Max.Capacity : 4 core (single fiber)
  • Cable ports : 2 pcs
  • Cable diameter : 7-10 mm
  • Adapter : 4 SC / LC duplex

Standard Accessory: 4*expansion screws, 4*sleeve,nylon tie,user manual Mounting size: 132.4/51.9mm
