Model: RS461110
Brand: RS

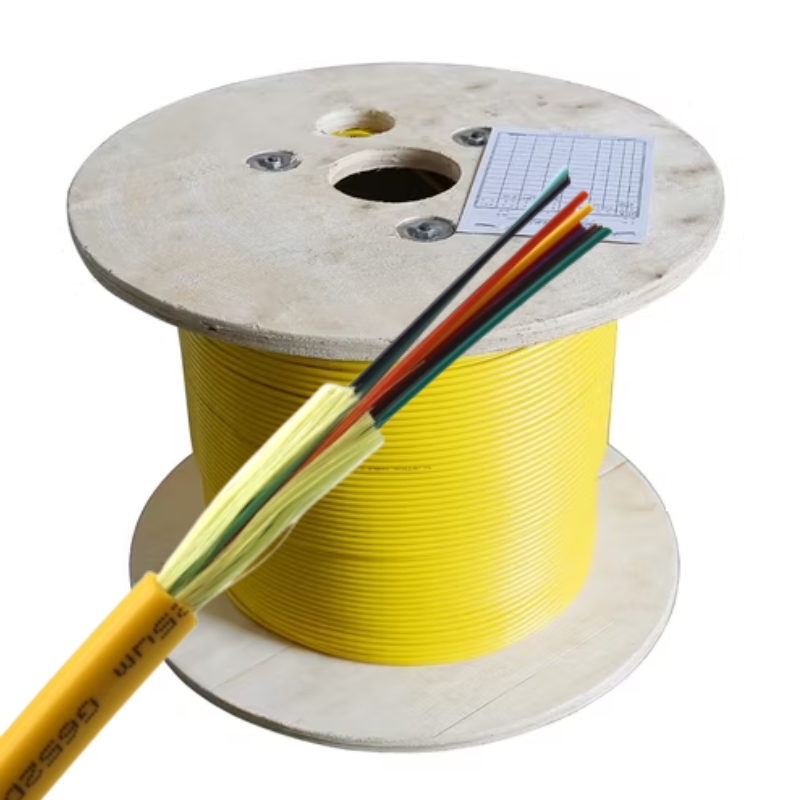

The 12 Core Multicore Indoor Distribution Cable (GJFJV/H) is designed for high-density indoor fiber optic applications. Built with G.657.A1 bend-insensitive single-mode fiber, this cable ensures stable performance and easy routing through tight spaces. The tight-buffered construction enhances flexibility and durability, while the aramid yarn strength member provides tensile reinforcement.
It features a flame-retardant LSZH yellow outer sheath, making it ideal for structured cabling, backbone, and FTTx deployments in buildings, data centers, and campus networks.
Specification | Details |
---|---|
Product Type | Multicore Indoor Distribution Cable (GJFJV/H) |
Fiber Count | 12 Cores |
Fiber Type | Single Mode, G.657.A1 |

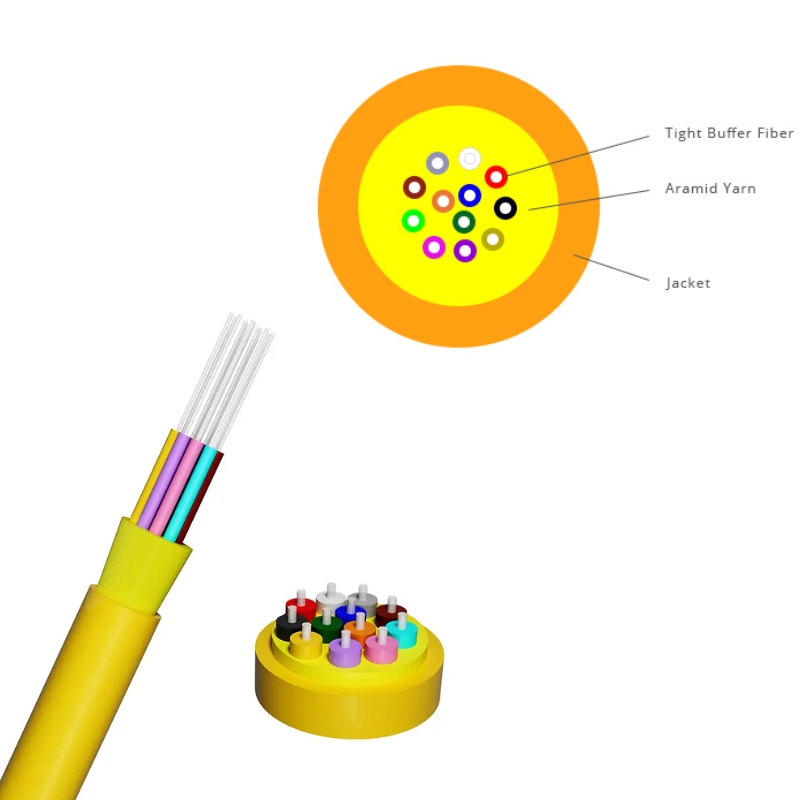

Construction | Tight-buffered |
Strength Member | Aramid Yarn |
Outer Sheath | LSZH (Low Smoke Zero Halogen) |
Sheath Color | Yellow |
Cable Diameter (±0.2mm) | 5.8mm |
Cable Weight (±2kg/km) | 36 kg/km |
Allowable Tensile Strength | 440N (Short Term) / 130N (Long Term) |
Crush Resistance | 1000N (Short Term) / 200N (Long Term) |
Min. Bending Radius | 10 × OD (No Tension) / 20 × OD (With Tension) |
Operating Temperature | -40°C to +70°C |
Wavelength | 1310nm / 1550nm |
Attenuation | 0.36 dB/km (1310nm), 0.22 dB/km (1550nm) |
Application | FTTx, building backbone, riser & indoor distribution |
Fiber count | 12 |
---|---|
Fiber mode | Single Mode |
Length | 1000m |
